PCAP Touch Screen Display with Windows OPS PC Slot
Experience the most versatile commercial touch screen on the market. The PCAP Touch Screen Display is a Commercial Open Frame Touch Display solution with an integrated Windows OPS PC Slot. It can be supplied as a stand-alone touchscreen monitor for use with an externally connected device or complete with neat a slot-in PC giving you the option to run Windows OS. We also sell Android PCAP Touch Screen Displays that do not feature an OPS PC slot and come with Android OS pre-installed.
Optional Integrated Windows PC
Easily transform this solution from an interactive touch monitor into a fully integrated all-in-one Windows touch screen simply by inserting an OPS PC into the built-in slot, with no cables required. To prevent theft or damage, this can be secured with a hex security screw.
Giant Tablet Styling
A stylish edge-to-edge glass face, rounded corners, aluminium surround with a unique concave indent profile, and thin black border deliver a captivating tablet-like aesthetic. The protective tempered glass face and mild steel enclosure also increase the durability of the display, protecting the LCD panel and other internal components from potential damage in public spaces.
PCAP Touch
State-of-the-art Projected Capacitive interactive technology offers the most responsive and sensitive touch experience available. Designed for commercial applications, PCAP touch technology works by fixing a sensor grid between a layer of cover glass and the LCD panel, when a finger touches the glass the grid detects the coordinates of the touch point. Unlike other touch technologies, PCAP is not affected by dust or debris on the screen surface, allows for up to 10 touch points and offers superior optical quality.
Surface Plasma Treatment
Not only is the front glass face tempered, which makes it more durable and suitable for public use, but it is also plasma treated to give it an oleophobic coating. What this means is that it is more resistant to surface oil and moisture which Reduces the residue left by fingerprints. It also lowers the surface tension and friction, making touch gestures much smoother, and improving the overall tactile experience for the user. All this is achieved without having an etched finish which means that the overall optical clarity is maintained to the maximum level.
10 Point Touch
Having up to 10 touch points allows users to perform a variety of touch gestures, including manipulating images and zooming in/out - much like you would with a domestic tablet or smart phone. It also allows multiple users to interact with the screen at the same time.
500cd/m² IPS Panel
With a brightness of 500cd/m², these monitors are ideal for brightly-lit public spaces. Plus, commercial-grade IPS technology ensures accurate image quality and colour depth with no fall-off in colour accuracy, as well as achieving ultimate lifelike colour temperature in both landscape and portrait orientation.
LED Backlight
The LED backlight used is not only eco-friendly but also ensures the display has enhanced brightness and contrast. This technology increases the lifespan and reduces power consumption by around 30%. This form of light technology is mercury-free; safeguarding this screen’s eco-friendliness.
24/7 Usage
Built with commercial-grade panels and components these displays are designed to run 24/7 in constant use; unlike domestic tablets. The panel also has a lifespan of over 70,000 hours of continuous use. They can also be used in landscape or portrait orientation.
Attach External Devices
You can attach external devices if required. Simply connect your device to the screen, via VGA or HDMI (for the video signal) and USB (for the touch functionality). The screen will then serve as your computer monitor and the touch functionality controls the cursor, essentially acting as your mouse.

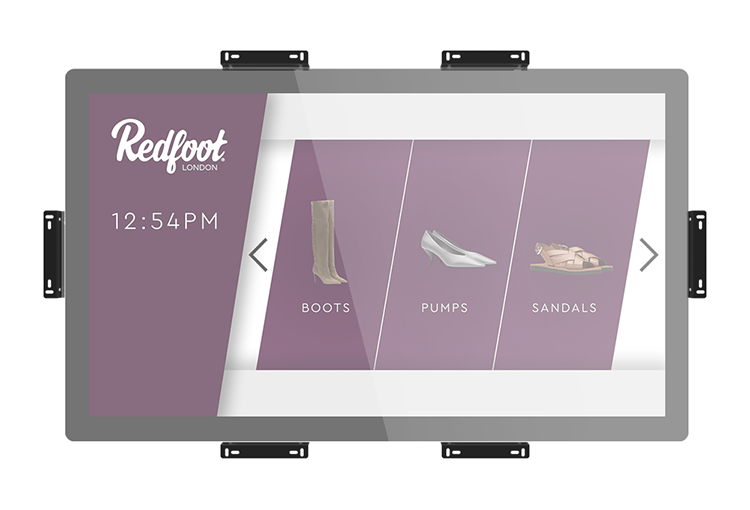

Open Frame Design
These open-frame touchscreen monitors are ideal for system integrators. With an underside mounting bracket included at no extra cost, this flexible solution can be mounted into any kiosk, table or cabinet in any direction or orientation. The bracket also features micro-adjustment in all three directions to enable flush-fit surface integration. Alternatively, these monitors can be wall or stand-mounted thanks to their complete enclosure. See open frame installation instructions here.
The PCAP Touch Screen can be used as a touch monitor if you connect your PC or purchase it with one of our OPS slot-in PC's. This allows you great flexibility allowing you to run the software of your choosing.
For those customers who are looking for a simple and easy-to-configure touchscreen solution, we also offer an Android-based touchscreen solution with is perfectly suited for use with our cloud-based 'Touch CMS' system.
Our groundbreaking new touch screen management system puts you in control as you create, deploy and touch your very own content on screen. First, you create your custom layouts with our user-friendly software that requires no knowledge of coding to use. Then deploy the content from your PC directly to your Touch Screen in a matter of seconds. Now all that is left to do is touch as you let your content do the talking about your brand, company, service or product. Our Touch CMS system is a subscription-based service and we offer 1 Year, 3 Year or Lifetime subscription options.
