Illuminova LED wall-mounted lightboxes combine modern edge-lit LED technology with stunning digitally printed fabric graphics to provide a wall-mounted illuminated light box solution with near-frameless graphics. With a frame depth of only 75mm, Illuminova LED lightboxes have a contemporary, modern appearance that is perfectly suited for both business and in-store retail locations.
Illuminova wall-mounted LED Lightboxes are designed for use with fabric graphics that are printed onto a specialist backlit fabric enabling bright and even illumination.
The fabric is sewn with a silicone beading around the perimeter that is designed to push-fit into a small channel around the perimeter of the frame. These types of graphics are commonly referred to as SEG graphics (silicone-edged graphics).
The fabric print is produced to an exact size so that it is pulled slightly under tension when fitted to the frame. This provides a smooth, flat surface.

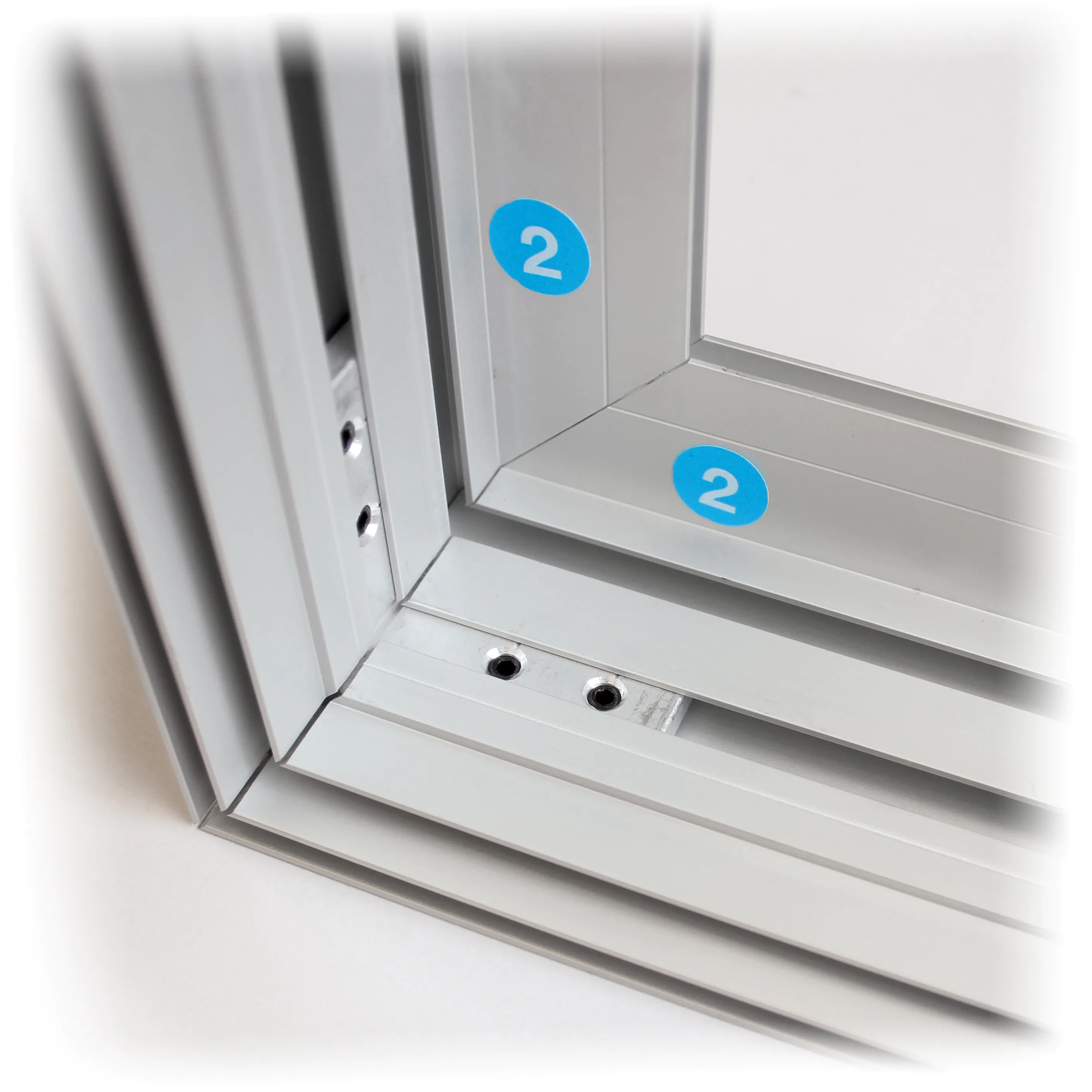

The Illuminova LED Wall Mounted Light Box uses a strong 75mm deep aluminium profile. Frames are available in standard and custom sizes on request.
Assembly is easy requiring only a hex key to fasten the sides of the frame with the corner L brackets. The frame sections are also numbered for reference.
Vector LED wall-mounted lightboxes can be securely mounted to almost any internal wall surface with appropriate screws and fixings (not supplied). Once the graphic is fitted to the frame, the screws and fixings are completely concealed.

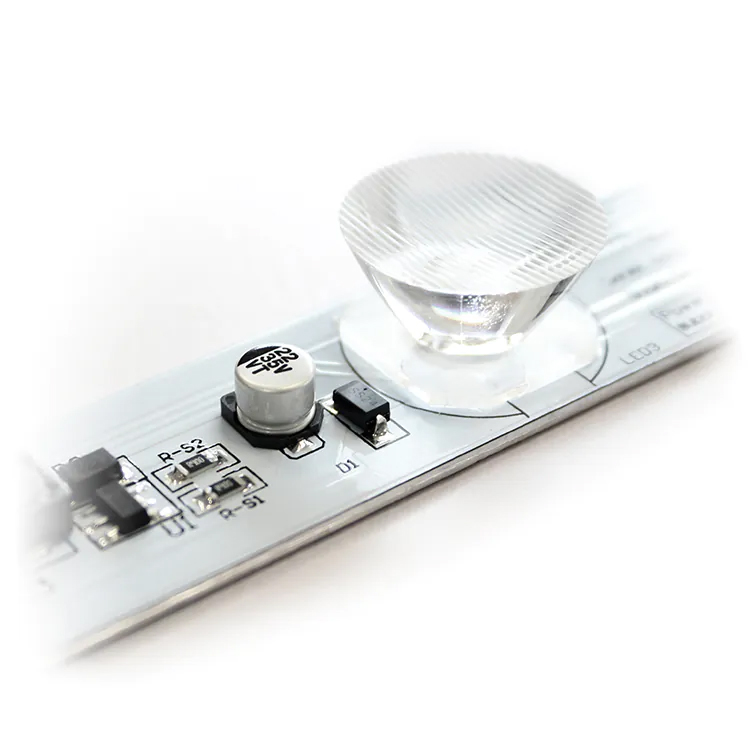

The Illuminova Wall-Mounted Lightbox is fitted with a series of ultra-bright LEDs that are installed into two opposing sides of the frame.
The opposing strips of LEDs produce a curtain of light that is trapped and refracted inside the frame providing bright, even illumination of the graphic surface from within.
In conjunction with our specialist backlit fabric prints, Illuminova wall-mounted lightboxes create high-impact graphics in any indoor space.
Illuminova LED wall-mounted lightboxes are supplied with a power transformer and 3-pin mains UK plug. The power transformer is compatible with any AC voltage between 110-240V making it suitable for worldwide use.

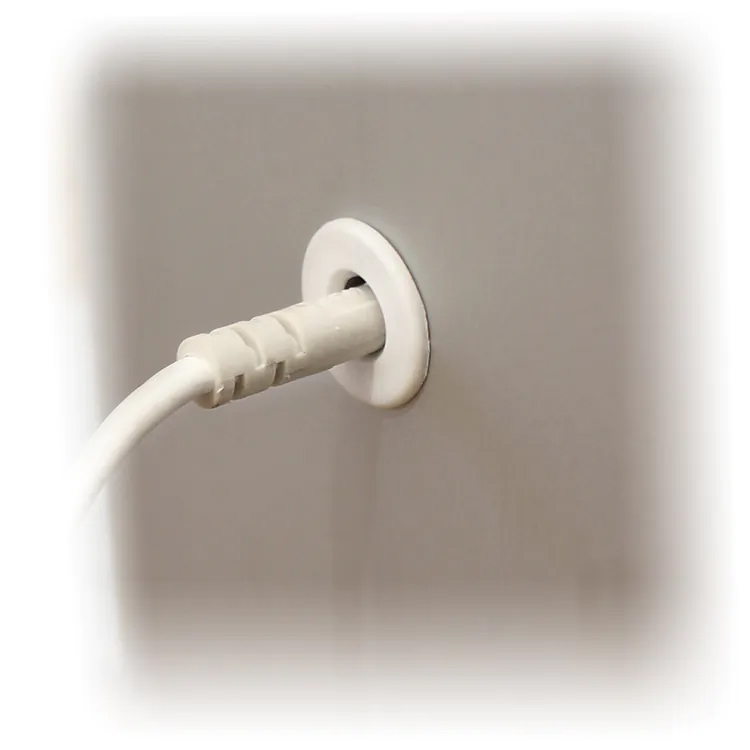

The supplied cable length is approximately 4 Metres and power is supplied to the frame via a small port. The position of the socket can be specified at the time of order on request.
By arrangement, lightboxes can also be provided with no external power socket for those customers who wish to channel their walls with cables to eliminate any visible wires.
Graphics for Illuminova Wall Mounted Light Boxes are printed and sewn in-house at our factory in the UK. Our backlit fabric prints are DIN 4102-1 rated and compliant for use in all public spaces.
We also offer backlit fabric prints for our wall-mounted lightbox displays, we can also produce them to suit display frames for other manufacturers too.
Our team are on hand to provide you with helpful support and assistance if you need it. Whether it's advice regarding the set-up of your artwork for printing or a technical question about the Illuminova LED Wall Mounted Lightbox, please don't hesitate to get in touch.
We can also offer a full installation service. Just get in touch with a member of our team who can assist.
| Easy-change graphic | Yes |
|---|---|
| Printing | Printed onto backlit display fabric |
| Colour | 75mm deep anodised aluminium frame |
| Condition | new |
| Customisable | Custom sizes available on request - contact us for pricing |
